12VDC Electric Ball Valve Actuator,Motorized Valve Controller/Control Switch/Motor-Driven,With Manual Control,CR301

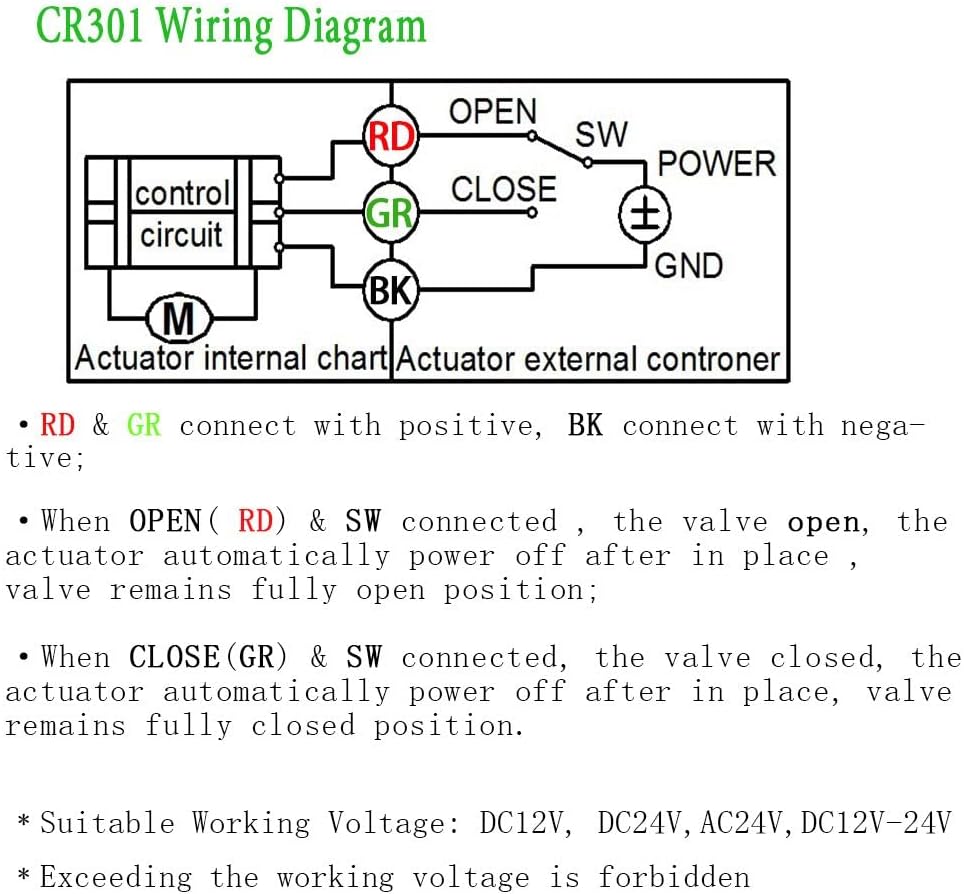

Product introductionThis 15N.m electric ball valve actuator is small and exquisite in appearance.Its internal transmission part adopts all-metal gears with high precision,switching time less than 12 seconds,smooth operation. Besides,its protection level is up to IP67.Safe,durable,energy-saving and environmentally friendly advantages,widely used in home,HVAC,industrial,medical,environmental protection equipment!Technical Parameter ※ Suit Valve Size：1/2"~2", DN15~DN50 ※ Maximum Working Pressure： 1.0MPa ※ Circulation Medium： Fluid,Air ※ Rated Voltage：12VDC ※ Wiring Control Methods： CR301 ※ Working Current： ≤ 1.5 A ※ Open/Close Time： ≤ 12 Sec ※ Actuator Meterial： Engineering Plastics PPO ※ Sealing Meterial： FKM # PTFE ※ Cable Length：0.5m ※ Actuator Rotation： 90° ※ Environment Temperature： -15°C~50°C ※ Liquid Temperature： 2 °C~90°C ※ Manual Override： Yes ※ Indicator ：Yes ※ Protection： IP67 Applicable occasion ※ 1. HVAC; ※ 2. Fire fighting equipment, medical equipment, cleaning equipment; ※ 3. Automatic control system, automatic irrigation and drainage equipment; ※ 4. Solar water heaters, solar water supply equipment; ※ 5. Water treatment systems, drinking water equipment, efficient water-saving appliances; ※ 6. Industrial self-control small equipment, environmental protection and other fields, replace the electromagnetic valve can not work in a variety of occasions.

• ◆ Voltage DC12V, switch time ≤ 12 seconds.
• ◆ 15 N.m torque, with manual function.
• ◆ All-metal gears inside the actuator.
• Two-wire to seven-wire control methods are available.
• ◆ The protection level is up to IP67, suitable for various harsh working environments.
